KiwiSDR HF receiver kit

00034

KiwiSDR HF receiver kit 00034
Accessories Handhelds
Price: 299.95 USDIn stock
Description

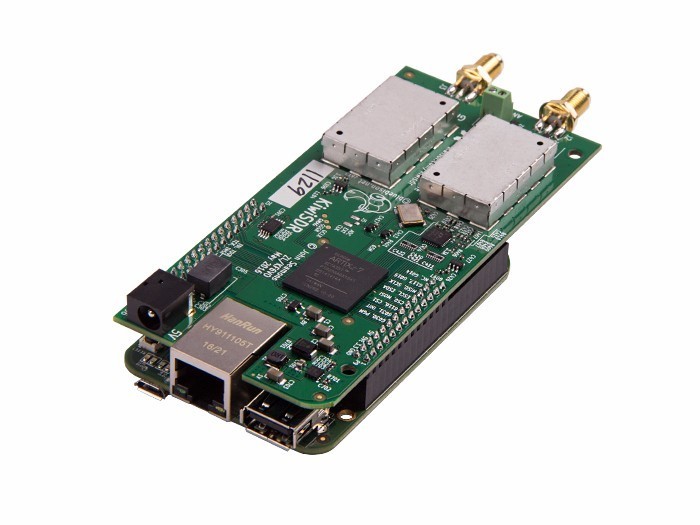

KiwiSDR is a software-defined radio (SDR) covering shortwave, the long-wave & AM broadcast bands, various utility stations, and amateur radio transmissions, world-wide, in the spectrum from 10 kHz to 30 MHz. The KiwiSDR is a custom circuit board (cape) you connect to the BeagleBone Green or BeagleBone Black computer. You simply add an antenna, power supply and network connection. Software supplied on a micro-SD card.

An HTML5-capable browser and internet connection will let you listen to a public KiwiSDR anywhere in the world. Up to four people can listen simultaneously to one radio — each listener tunes independently.

Try it out now! Listen to KiwiSDR registered on the sdr.hu website.

Features

  • 100% Open Source / Open Hardware.
  • Browser-based interface allowing four simultaneous user web connections.
  • Each connection tunes an independent receiver channel over the entire spectrum.
  • Waterfall tunes independently of audio and includes zooming and panning.
  • Multi-channel, parallel DDC design using bit-width optimized CIC filters.
  • Good performance at VLF/LF since we personally spend time monitoring those frequencies.
  • Automatic frequency calibration via received GPS timing.
  • Easy hardware and software setup. Browser-based configuration interface.
  • Extension interface for adding decoders and utilities.

Specifications

  • SDR covers the 10 kHz to 30 MHz (VLF-HF) spectrum.
  • Web interface based on OpenWebRX from András Retzler, HA7ILM.
  • Demodulation modes: AM, AMN, LSB, USB, CW, CWN, NBFM.
  • Extensions at present: WSPR viewer/decoder, IQ display, Loran-C viewer.
  • RF antenna connector: SMA and terminal block.
  • Integrated software-defined GPS receiver from Andrew Holme's Homemade GPS Receiver.
  • GPS receives the Navstar system on L1 frequency 1575.42 MHz.
  • GPS antenna connector: SMA, 3.3V powered for active antennas.
  • Voltage: +5V DC, 2.1mm jack, center pin positive.
  • Current: 1.5A including Beagle, KiwiSDR powers Beagle through header connectors.
  • Dimensions: KiwiSDR PCB 117mm * 55mm, SMA connectors additional.

Includes:

  • 1 x KiwiSDR Board
  • 1 x Beaglebone Green
  • 1 x Unassembled enclosure
  • 1 x Skyworks SE4150L GPS front-end antenna
  • 1 x Micro-SD Card

Documents

  • For source code and issues list, please visit our Githubpage.
  • For technical discussion, please come to our Forum.
