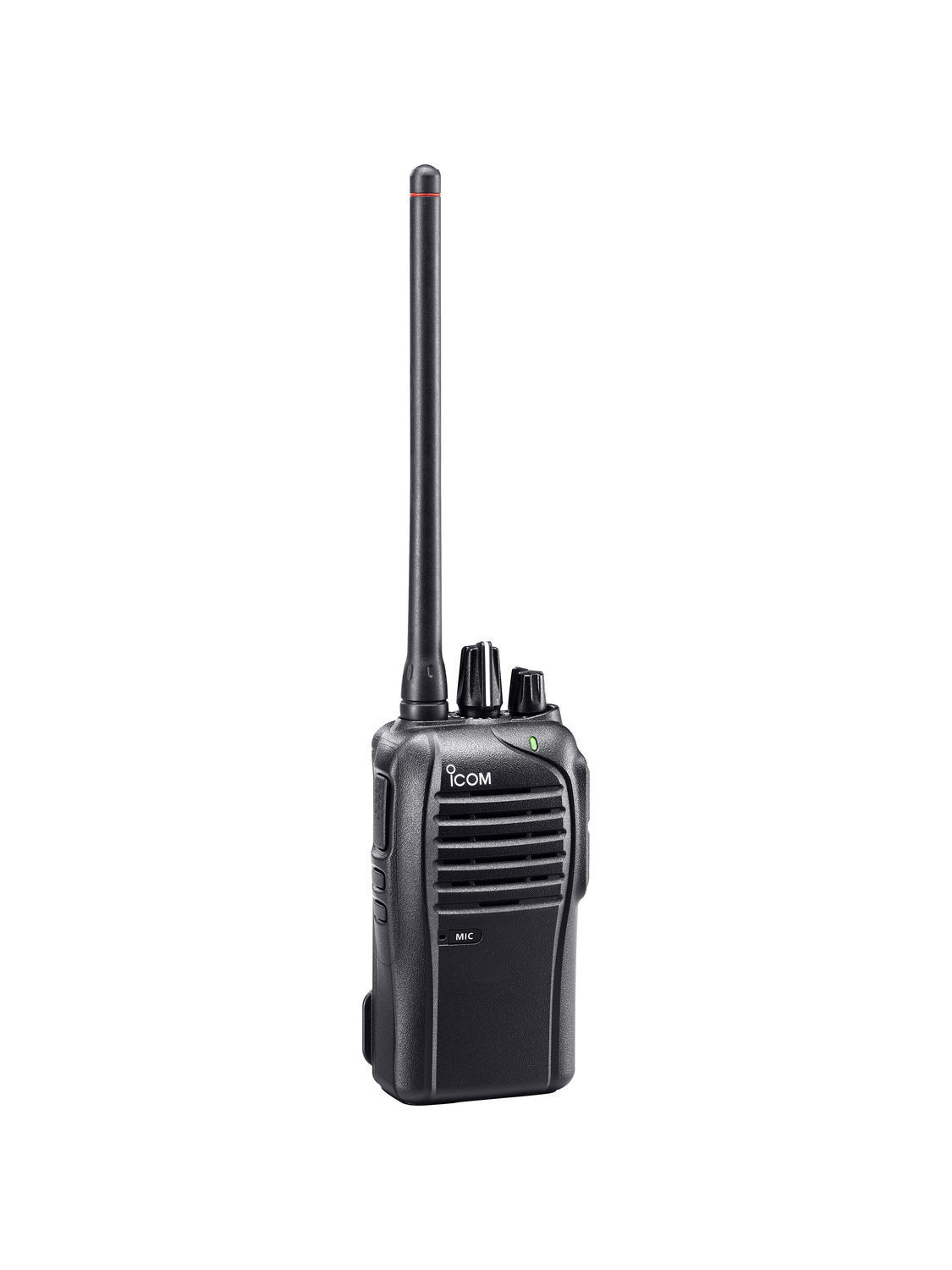

Icom F4210D 21 RC IDAS UHF radio


Icom F4210D 21 RC IDAS UHF radio 210
Icom Handhelds UHF
Price: 388 USDIn stock

450 - 512 MHz; 12.5KHz only & IDAS; 16 channels; BC-193 rapid charger in the box

Everything You Expect in a Business Radio Plus Digital!

IDAS™ digital mode operation

  • The IC-F4210D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site and single-site trunking and IDAS multi-site conventional.

Easy to hear in noisy areas

  • The built-in bridge-tied load (BTL) amplifier delivers a powerful 800mW* audio output from the large 45mm speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
    *Typical with internal speaker.

Channel announcement

  • When you rotate the channel knob, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

Longer operating time

  • The Li-Ion battery pack, BP-265 (7.4V, 2000mAh typ.), provides 17.5/16 hours* of operating time. Even when used with the BP-264, the radio offers 12/11 hours* of operating time.
    *VHF/UHF, Tx:Rx:Standby=5:5:90. Power save function ON.

Weather resistant, military rugged

  • While the radio is compact and light weight, the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MIL-STD-810 environmental tests. In short, the IC-F4210D series is built rugged!

Internal VOX capability

  • The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.

Roaming scan

  • In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.

IDAS™ digital mode features

    • PTT ID (TX)
    • Block decode
    • Radio check (RX)
    • Call alert
    • Emergency
    • GPS (TX with HM-171GP)
    • Individual/Group call
    • RAN (Radio Access Number)
    • Stun/kill/revive (RX)
    • Remote monitor (RX)
    • Digital voice scrambler
    • ATB (All Trunks Busy) ring back
    • *TX: Transmit, RX: Receive

Other features

    • CTCSS/DTCS encode/decoder*
    • Low battery alert
    • 3-color LED
    • Time out timer
    • Lone worker function
    • Forced narrow function*
    • 2-step power save
    • PC programmable
    • Voting Scan
    • Talk around function
    • No emergency in analog mode
    • Surveillance function
    • (* = analog only)

Built-in 2-tone and 5-tone (analog mode)

2-Tone and 5-tone signalings give you selective calling, quiet stand-by and other convenient functions. The radio stun and kill functions disable a radio over the air and the revive function restores the stunned radio.

Scan features

The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The transmit channel and talk back functions allow you to make a quick response while scanning.

The IC-F4210D: a multitude of advantages because it's IDAS

Advantage 1: Individual/group call
individual/group call

This is a simple and basic setting for those who use the radio mainly for individual and group call. Use the 16-position rotary channel knob to select the appropriate individual or group call. This setting also can be used with analog 2-tone or 5-tone signaling.

Advantage 2: Digital/analog mixed mode
digital/analgo mixed mode

The IC-F4210D series can receive both analog and digital mode signals on a single channel and automatically selects the received mode to reply to the received call, while the talk back timer remains. It's a smart way to grow into digital radio – at your won pace, as your budget and comfort allow.

Advantage 3: Perfect group communication tool, large or small
group communication

Mix the basic IC-F4210D series with the advanced IC-F4161D series for efficient group managed systems. Commands like radio stun, kill and revive as well as the caller ID of the IC-F4210D displayed on the administrator's radio provide efficient communication within the group.

Advantage 4: Multi-site conventional mode
multi-site conventional mode

When using the IC-F4210D series in IDAS multi-site conventional mode, the IC-F4210D can communicate with other IDAS radio users working with other repeater sites and/or virtual radio/PC dispatch stations on the IDAS network.

Advantage 5: GPS capability

When used with the optional GPS speaker-microphone, HM-171GP, GPS position data can be sent to other advanced IDAS radios (PC and software required) and/or virtual radio/PC dispatch stations.

IDAS single-site trunking
idas single-ste trunking

The IC-F4210D series can be used in an IDAS MultiTrunk trunking system. The IDAS trunking system is a distributed system (similar to the analog LTR™ trunking) with no control channel, so more voice traffic channels are available for increased system capacity.

*All advantages shown represent possible system configurations. Ask your Icom dealer to configure an IDAS system that works best for you. Note: Private IP Network or VPN Tunnels through the Internet with static endpoints.
