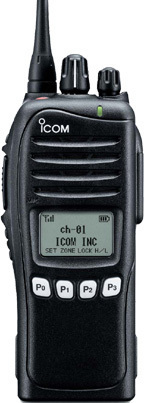

Icom F3161DS 75 IDAS VHF handheld
136-174 MHz; Analog; IS; LTR; 6.25 digital; no keypad; UT126H installed
LTR®/Conventional/ Digital* Multi-Mode Handheld! * With UT-126H installed. Already installed in the IC-F3161/F4161 "D" versions.
Multi-site conventional systems are possible with IDAS LINQ. Choose from the following configurations:LINQREPEAT, LINQREPEAT+, LINQVOTE, and LINQVOTE+.
Learn more about LINQ >
IDAS multi-site operation has now expanded to trunking! MultiTrunk opens the possibility of building a regional or multi-campus system of trunking repeaters.
Learn more about MultiTrunk™ >
Intrinsically safe version available
The Intrinsically safe version is approved by the FM Approvals. For use in workplaces where combustible substances or environments exist. See new brochure for more details.
Basic LTR®/conventional mode operation
Both LTR® trunking and conventional channels are programmable on a radio. Group, selective (DTMF), and phone call are available in LTR® mode.
IDAS mobile and portable subscribers can support both the latest versions of PassPort™ or is backward compatible to earlier versions. Icom PassPort is a reliable alternative to add to your PassPort Fleet.
IP55 dust-protection and water jet resistance
The IC-F3161/D series meets IP55 requirements for dust-protection and water jet resistance. Its durable construction is backed up by the aluminum die-cast chassis and polycarbonate casing, allowing reliable operation under harsh weather and environmental conditions.
Lithium-Ion battery pack
The supplied 2000mAh Li-Ion battery pack, BP-232N, provides 14 hours* of operating time. The optional battery case BP-240 provides a convenient back up and great reassurance in an emergency.*Typical operation Tx:Rx:Stand-by=5:5:90, power save on
Most popular signalings built-in
The 2-Tone, 5-Tone, CTCSS, DTCS and MDC signaling capabilities are built-in for group communication or selective calling. The radio can decode ten 2-Tone codes or eight 5-Tone codes on a channel. When a matched tone is received, the following actions are programmable for each code.
- Beep sound
- Bell icon
- Answer back call
- Auto TX
- Radio stun/kill/revive
MDC 1200 Compatible
The following selective calling and ANI features are available with the built-in MDC signaling.
- PTT ID
- Radio check
- Radio stun/revive
- 500 Aliases
- Status message/request
- Call alert
- Emergency, emergency mic monitoring
Voting mode scanning
The voting mode scanning detects the signal strength level of repeater stations and automatically selects the strongest station, useful for roaming between 2 or more repeater sites. Once you program the voting mode to a memory zone, you can easily start voting mode operation by changing the zone setting.
Full dot-matrix LCD
Using a large full dot-matrix LCD (32 18 mm), the IC-F3161/D series shows upper and lower case characters clearly. The display setting is selectable from 1 line, 12 characters or 2 lines 24 characters via programming. The bottom row shows assigned functions to the [P0] to [P3] buttons.
The IC-F3161/D series employs a BTL amplifier that increases the audio output and the built-in audio compander provides clear, low noise communications.
Lone worker function
When the radio is not operated for a preset period, a beep sounds and a button push is required. If no button is pushed within that preset time, an emergency signal automatically transmits and alerts your co-worker or dispatcher to any potential trouble.
Built-in inversion-type voice scrambler
The built-in inversion type voice scrambler* provides secure conversation as standard. When a more secure system is required, the 32 code non-rolling-type voice scrambler UT-109R and 1020 code rolling type UT-110R are available as an option.*Inversion type voice scrambler is not compatible with UT-109/UT-110 voice scrambler.
IDAS system digital mode ready
The IDAS (Icom Digital Advanced System) is Icoms digital land mobile radio system using the NXDN common air interface. It has useful calling features including selective calling, status message, radio stun/kill/revive, etc.
The IC-F3161 series provides 2 optional slots: one optional slot for the UT-126H digital unit and one for an additional option board. See the IDAS brochure for details.
- 512 memory channel with 128 zones
- 8 DTMF autodial memories
- 2 step reduced power setting
- Power on password
- Busy, repeater lockout functions
- Escalating alarm
- Mode dependent scan
- Surveillance function temporarily turns off the LED backlight and beep sound
- Powerful 5W output both in VHF and UHF
- Flash CPU for future upgrade and more...
