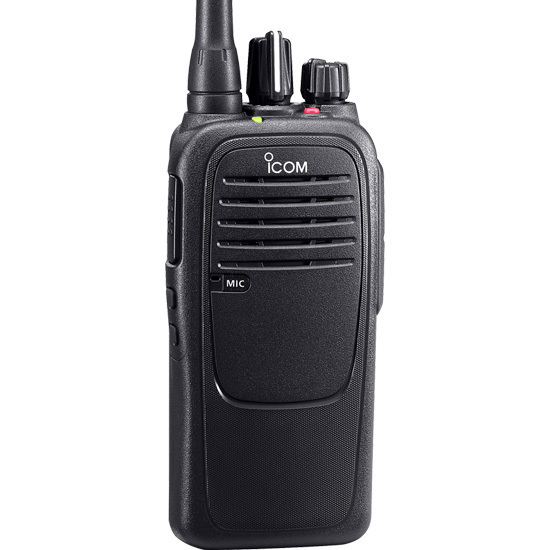

Icom F2000D 01 UHF IDAS & Analog radio 16ch 400-470MHz

579

Icom F2000D 01 UHF IDAS & Analog radio 16ch 400-470MHz 579
Icom Handhelds UHF
Price: 249.95 USDIn stock

Demo 400-470 MHz 16 channel IDAS entry level portable radio

Compact, Slim Dimensions IP67 Waterproof and Full of Useful Features

IP67 Waterproof and dust-tight protection

The IC-F2000 series has a 24.5mm 0.96 in slim depth with IP67 waterproof casing. The transceiver can withstand 1m depth of water for 30 minutes. Its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.

Enhanced emergency with built-in motion sensor

With a built-in motion sensor, the IC-F2000 series can detect its position, state of motion and non-motion and can send an emergency signal. The motion function detects if the transceiver is moving or shaking, for example, during a chase. The lone worker and man down functions are programmable.

Selective calling, quiet stand-by and more

The IC-F2000 series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities for group communication and selective calling.

MDC 1200 compatible

The following MDC features are programmable.

  • PTT ID
  • Emergency No ACK transmission
  • Radio check RX only
  • Stun/Revive RX only
  • Transmit status messages LCD types only
  • 100 alias table LCD types only

Easy to hear in noisy areas

The large 36mm speaker of the transceiver provides clear companded 800mW* audio. The built-in BTL amplifier doubles the audio output power and delivers loud and intelligible voice to a radio operator working in noisy environments.

* Typical with internal speaker

Channel announcement

When you rotate the channel knob, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

Built-in inversion voice scrambler

The built-in inversion voice scrambler provides secure conversation. Up to 16 codes are selectable.

14 Hours of operating time

The supplied waterproof Li-Ion battery pack, BP-279 7.2V DC, 1485mAh, provides 14 hours* of operating time.

*Tx:Rx:Standby=5:5:90. Power save function ON.

Other features

  • 8 DTMF autodial memories
  • "Shift key" function increases number of programmable key assignments
  • Surveillance function
  • Escalating alarm

Supplied accessories

  • Battery pack, BP-279
  • Belt clip, MB-133
  • Antenna FA-SC57U or FA-SC55V

Compact, Waterproof Digital Business Radio

IDAS™ Digital Mode Operation

The IC-F1000D/F2000D can program Type-D single- site trunking and digital conventional modes as well as analog mode per channel. The IDAS digital mode employs 4-level FSK modulation and the NXDN™ common air interface, offering true 6.25kHz spectrum efficiency, higher security and better audio clarity – even at the fringes of the communication range.

The following IDAS features are programmable:

  • PTT ID TX
  • Individual/group calls
  • Radio check RX
  • Stun/Kill/Revive RX
  • Remote monitor RX
  • Emergency TX
  • Call alert RX
  • Digital voice scrambler 15-bit
  • Status Call Power ON/OFF status and GPS request
  • Voting scan for multi-site conventional operation TX: Transmit, RX: Receive

Intelligent Emergency Functions

To assist in worker safety, the IC-F1000D/F2000D has three emergency related functions: motion detection, man down and lone worker functions. If one of these functions are activated, the transceiver automatically enters an emergency phase and starts counting down to send an emergency signal. The built-in motion sensor detects its position and states motion and non-motion.

IP67 Waterproof and Dust-tight Protection

While the body is compact, the IC-F1000D/ F2000D has rugged construction providing superior protection against water 1m depth for 30 minutes, dust, sand, mud and other objects. The radio is also tested to MIL-STD 810 specifications. It can withstand harsh use.

Slim, Compact and Lightweight

The IC-F1000D/F2000D has a compact 52.2×111.8×30.3mm body and weighs only 260g with BP-280 battery pack and belt clip. It’s easy to carry around anywhere.

Optional GPS Speaker-Microphone

With the optional GPS speaker-microphone, HM-171GPW, GPS position data can be attached to a voice or data transmission such as responding a GPS request status call.

Easy to Hear in a Noisy Environment

The large 36mm speaker of the transceiver provides clear 800mW* audio. The built-in BTL amplifier increases the audio output power and delivers loud and intelligible voice to a radio operator working in noisy environments.

*Typical with internal speaker.

Built-in 2-Tone and 5-Tone Analog mode

The IC-F1000D/F2000D has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capability for analog mode group communication and selective calling. The IC-F1000D/F2000D can be used as an analog transceiver ready for future digital migration.

Long-Lasting Battery Pack

The large capacity waterproof battery pack, BP-280 2400mAh typ., provides 18 hours of operating time*. The supplied rapid charger BC-213* charges the BP-280 in 3.5 hours.

*Tx: Rx: Standby=5:5:90. Power save function ON. BC-213 may be not supplied depending on version.

Other features

  • DTMF autodial memories
  • MDC 1200 functions: PTT ID, emergency call, radio check RX and stun/revive RX
  • Surveillance function
  • Escalating alarm
  • VOX capability for hands-free operation
  • Channel announcement function
  • Red emergency switch on the top panel

Supplied accessories

May vary depending on version.
  • Battery pack, BP-280
  • Belt clip, MB-133
  • Antenna
