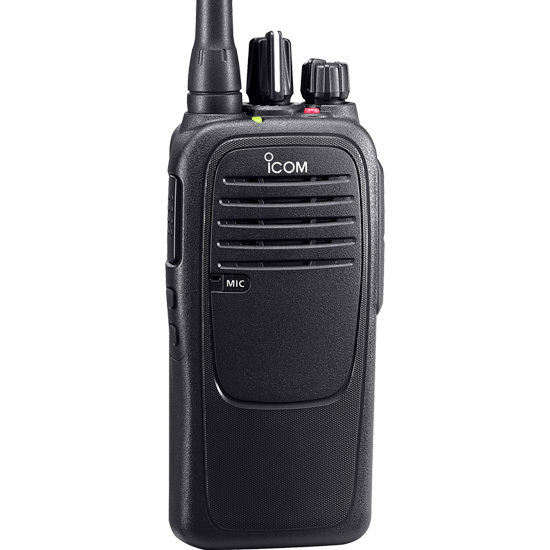

Icom F1000D 01 IDAS and analog VHF radio waterproof
136-174 MHz 16 channel IDAS entry level portable radio
Compact, Waterproof Digital Business Radio
IDAS™ Digital Mode Operation
The IC-F1000D/F2000D can program Type-D single- site trunking and digital conventional modes as well as analog mode per channel. The IDAS digital mode employs 4-level FSK modulation and the NXDN™ common air interface, offering true 6.25kHz spectrum efficiency, higher security and better audio clarity – even at the fringes of the communication range.
The following IDAS features are programmable:
- PTT ID (TX)
- Individual/group calls
- Radio check (RX)
- Stun/Kill/Revive (RX)
- Remote monitor (RX)
- Emergency (TX)
- Call alert (RX)
- Digital voice scrambler (15-bit)
- Status Call (Power ON/OFF status and GPS request)
- Voting scan for multi-site conventional operation TX: Transmit, RX: Receive
Intelligent Emergency Functions
To assist in worker safety, the IC-F1000D/F2000D has three emergency related functions: motion detection, man down and lone worker functions. If one of these functions are activated, the transceiver automatically enters an emergency phase and starts counting down to send an emergency signal. The built-in motion sensor detects its position and states motion and non-motion.
IP67 Waterproof and Dust-tight Protection
While the body is compact, the IC-F1000D/ F2000D has rugged construction providing superior protection against water (1m depth for 30 minutes), dust, sand, mud and other objects. The radio is also tested to MIL-STD 810 specifications. It can withstand harsh use.
Slim, Compact and Lightweight
The IC-F1000D/F2000D has a compact 52.2×111.8×30.3mm body and weighs only 260g (with BP-280 battery pack and belt clip). It’s easy to carry around anywhere.
Optional GPS Speaker-Microphone
With the optional GPS speaker-microphone, HM-171GPW, GPS position data can be attached to a voice or data transmission such as responding a GPS request status call.
Easy to Hear in a Noisy Environment
The large 36mm speaker of the transceiver provides clear 800mW* audio. The built-in BTL amplifier increases the audio output power and delivers loud and intelligible voice to a radio operator working in noisy environments.*Typical with internal speaker.
Built-in 2-Tone and 5-Tone (Analog mode)
The IC-F1000D/F2000D has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capability for analog mode group communication and selective calling. The IC-F1000D/F2000D can be used as an analog transceiver ready for future digital migration.
Long-Lasting Battery Pack
The large capacity waterproof battery pack, BP-280 (2400mAh typ.), provides 18 hours of operating time*. The supplied rapid charger BC-213* charges the BP-280 in 3.5 hours.*Tx: Rx: Standby=5:5:90. Power save function ON. BC-213 may be not supplied depending on version.
- DTMF autodial memories
- MDC 1200 functions: PTT ID, emergency call, radio check (RX) and stun/revive (RX)
- Surveillance function
- Escalating alarm
- VOX capability for hands-free operation
- Channel announcement function
- Red emergency switch on the top panel
Supplied accessoriesMay vary depending on version.
- Battery pack, BP-280
- Belt clip, MB-133
